Centerforce DYAD ® DS 10.4, Multi-Disc Clutch and Flywheel Kit, 55.60 lbs, 164 Tooth Gear, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 23M-Spline, Fits Ford s Mustang 5.0L

SKU: 413234818

The Centerforce® DYAD® DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

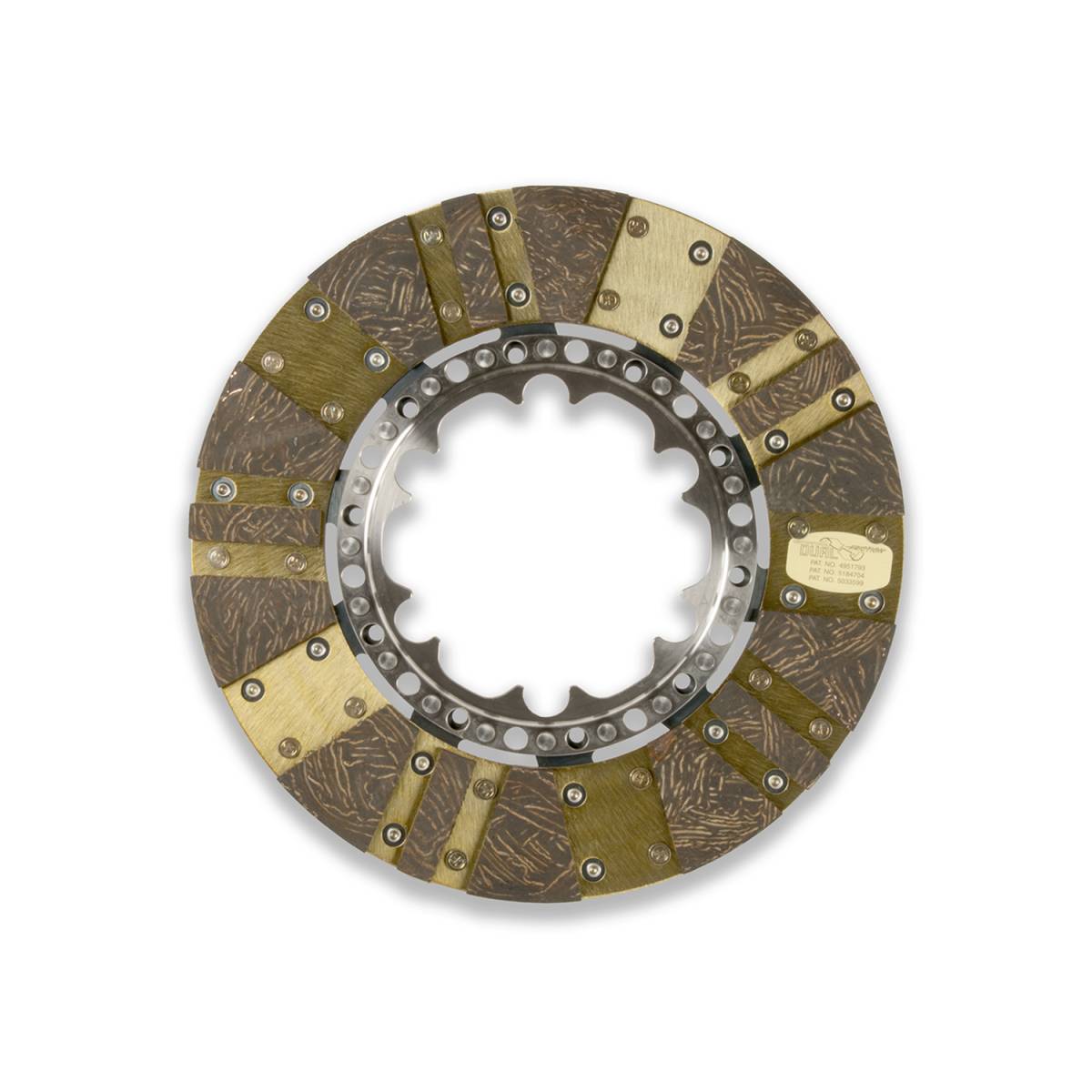

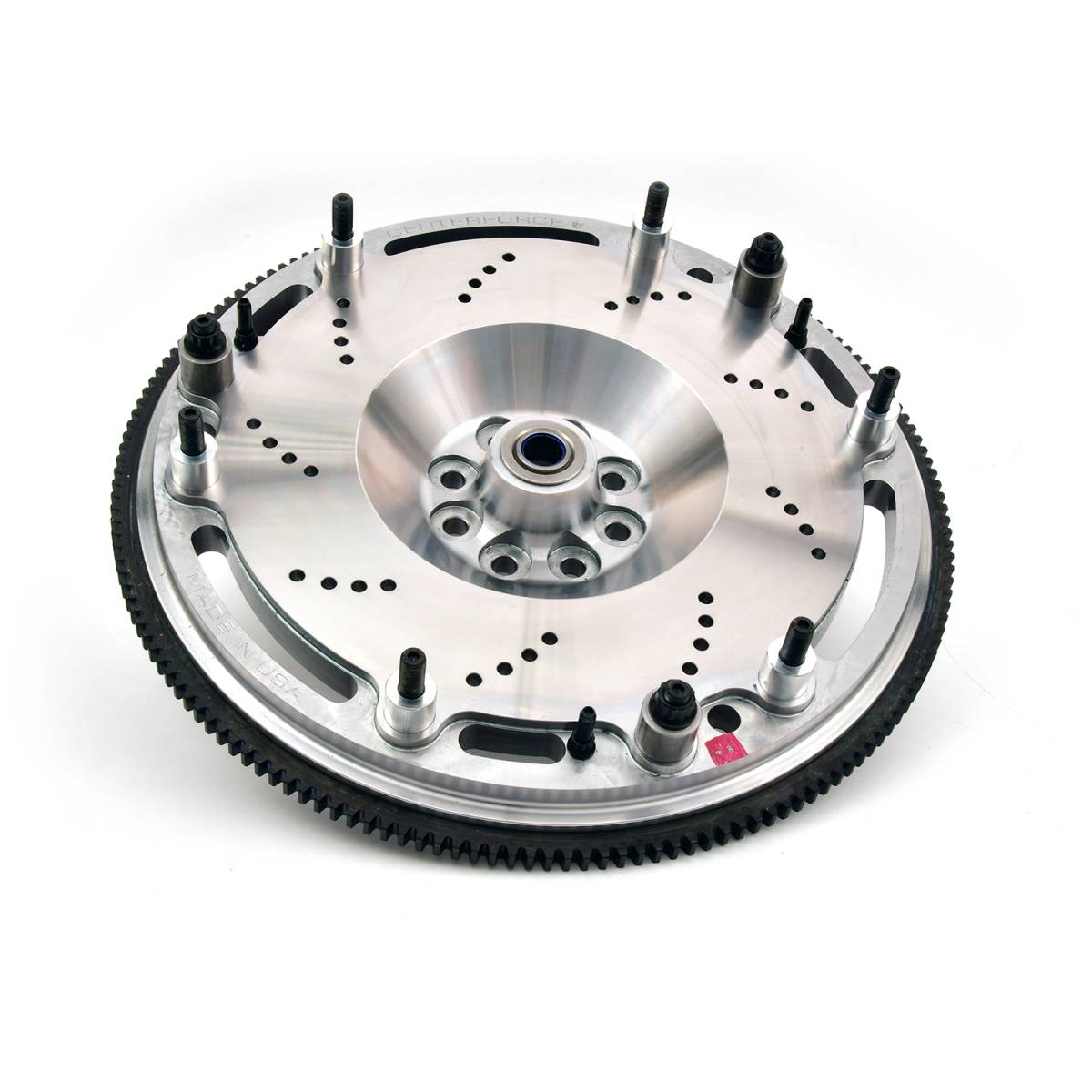

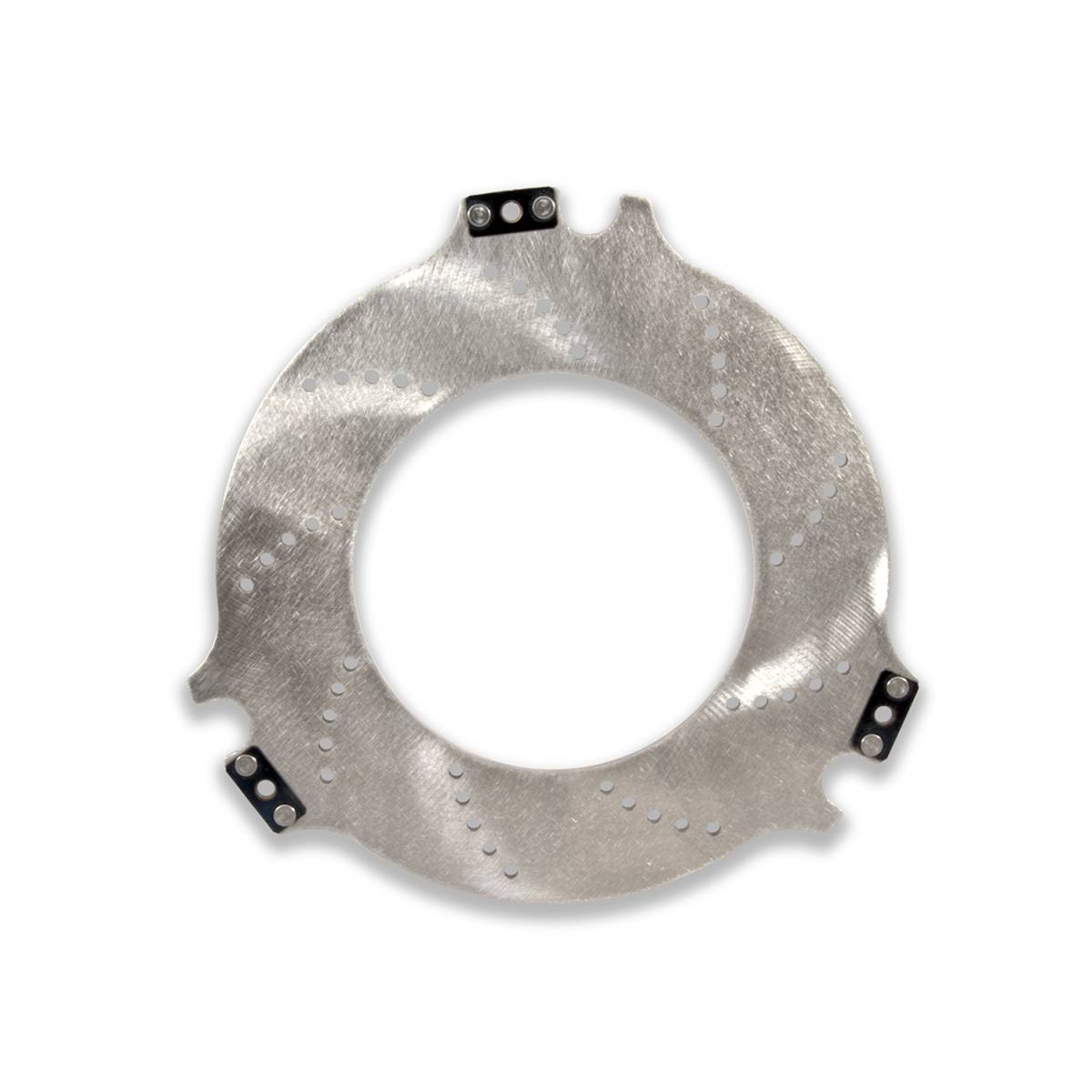

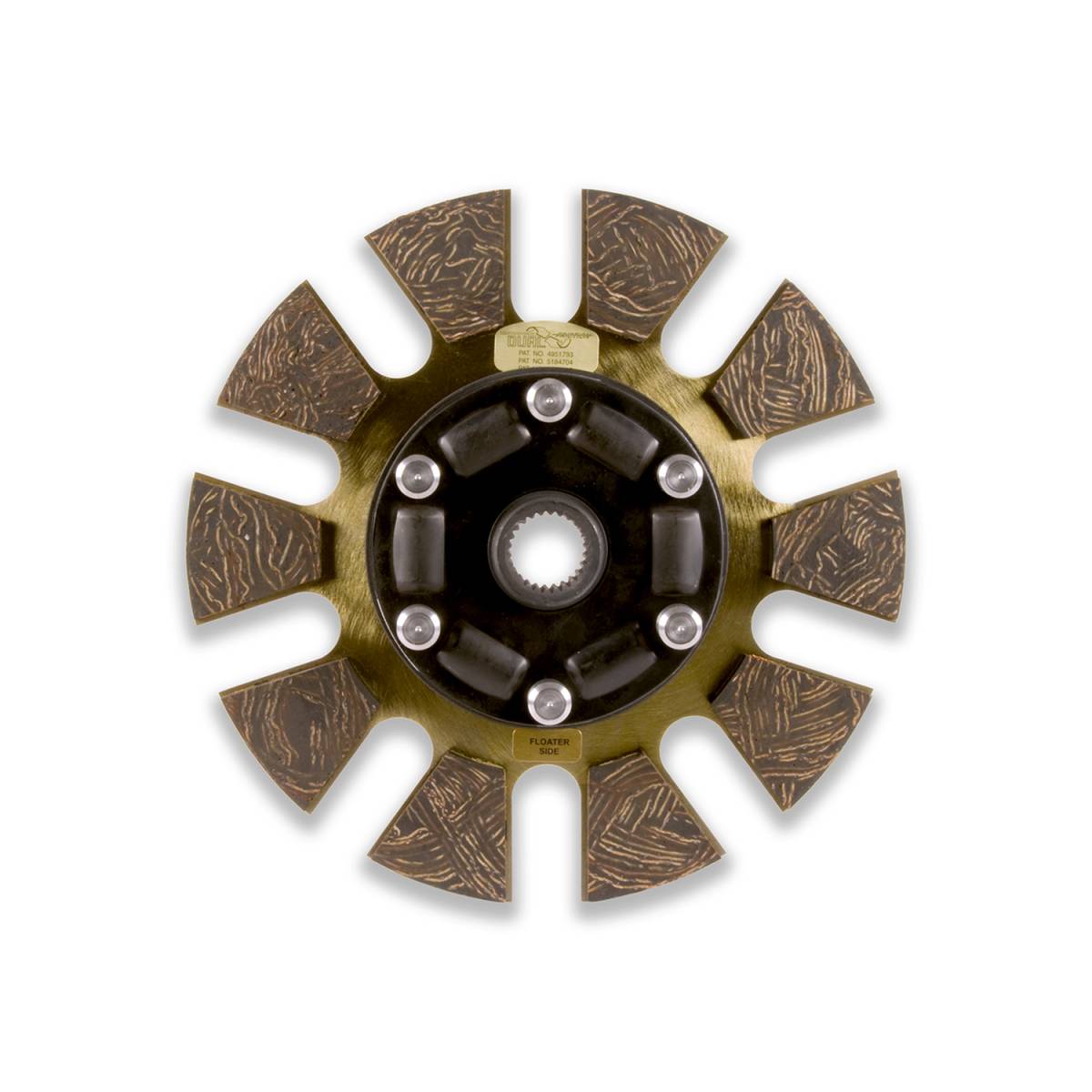

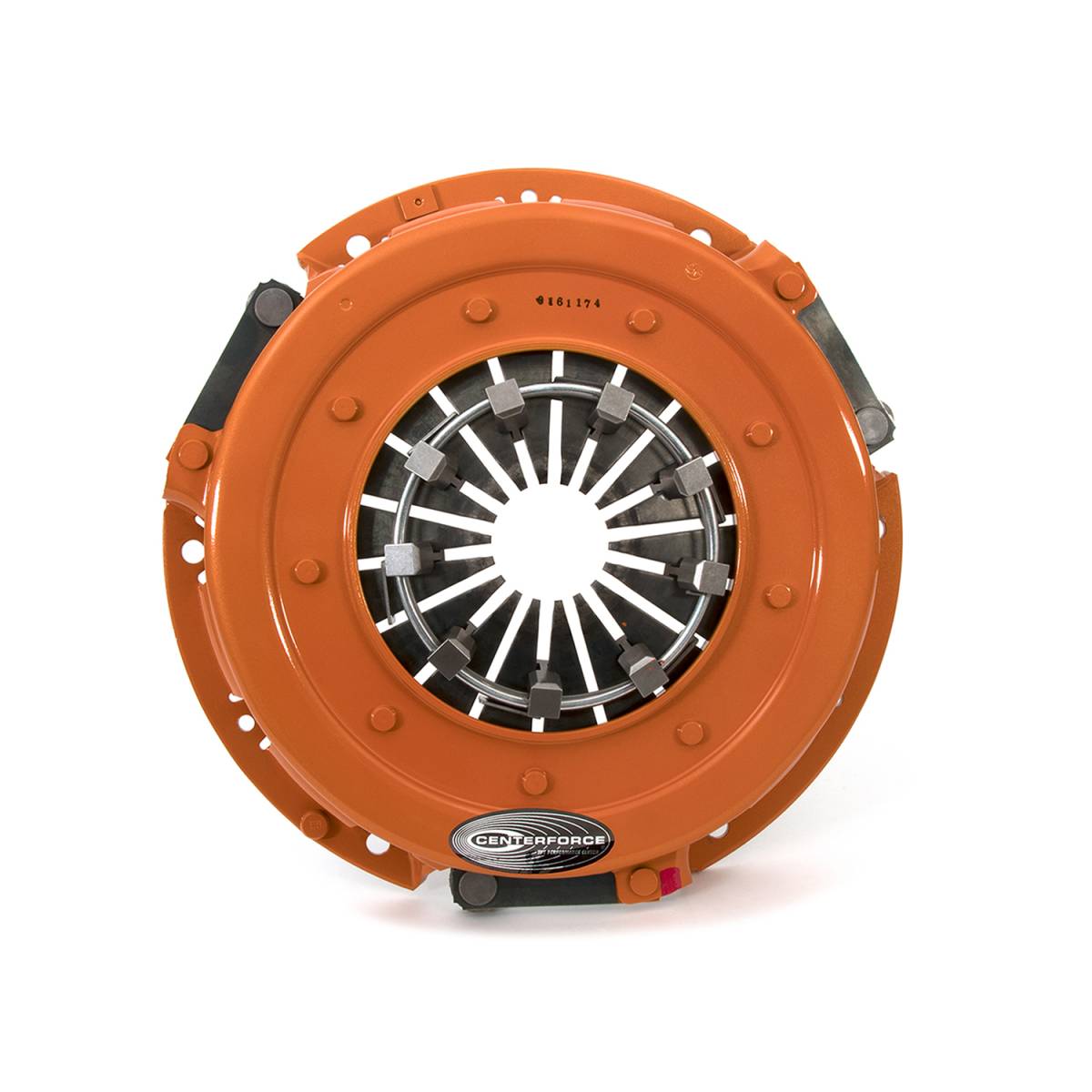

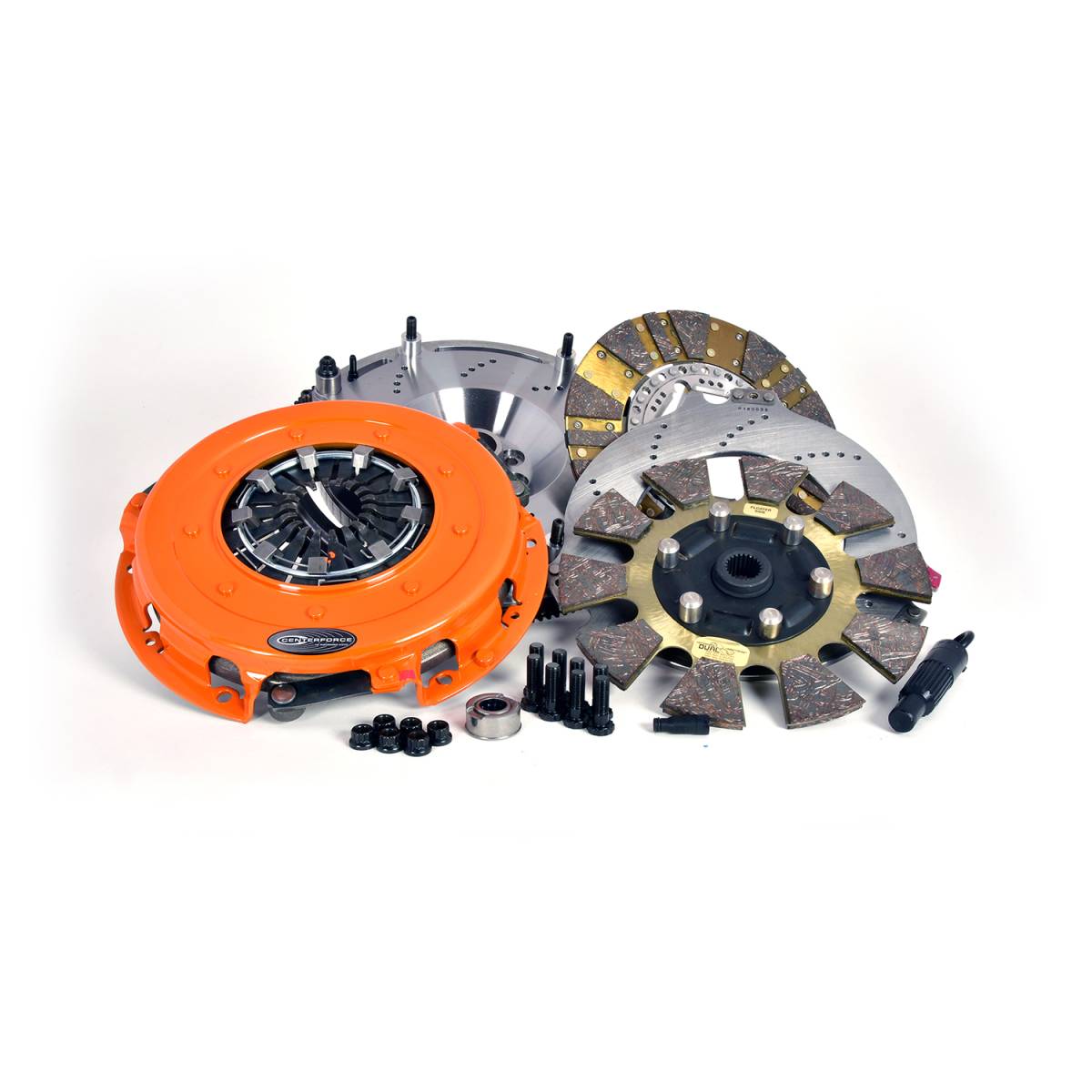

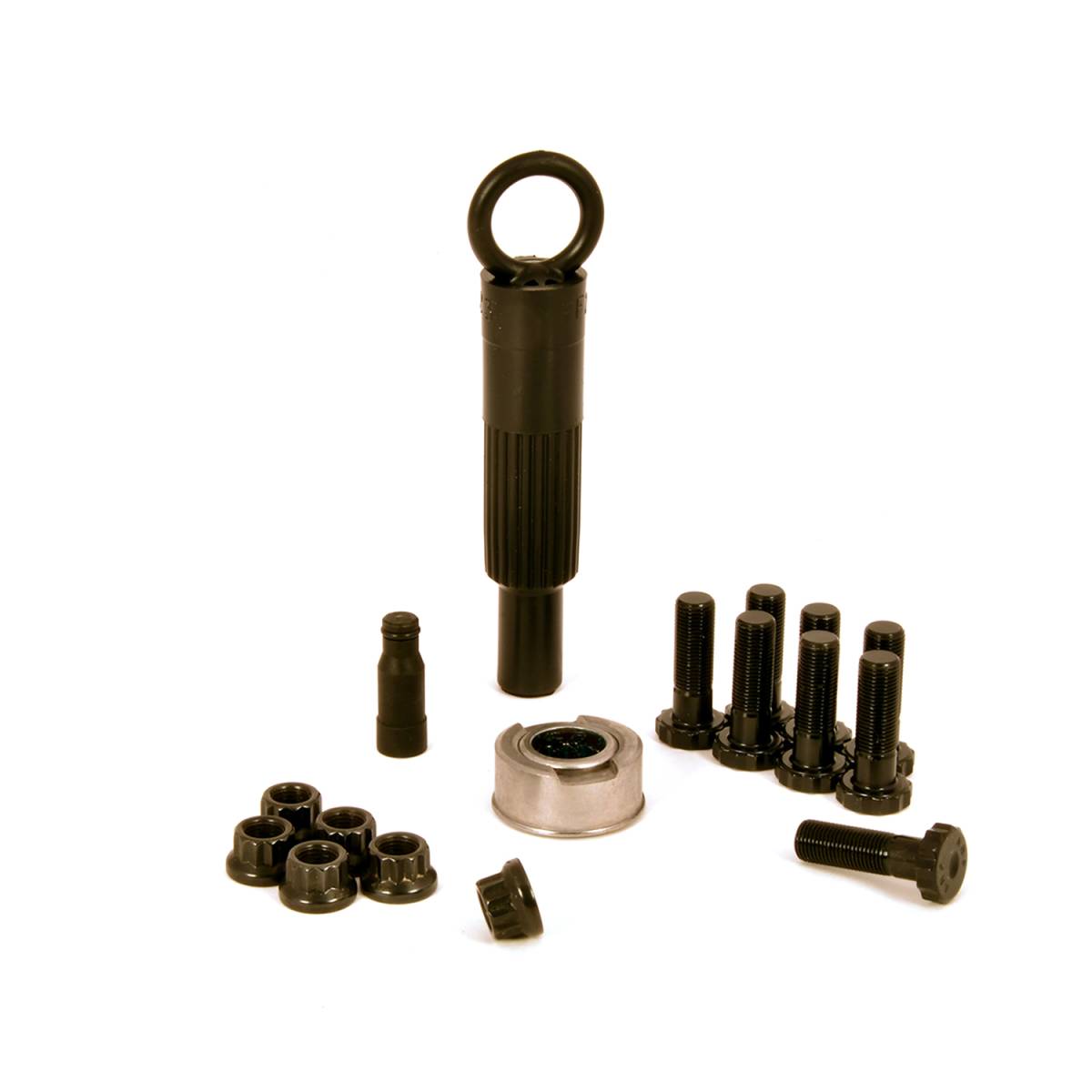

INCLUDES: Cover, Discs, Floater, Flywheel, Hardware, Pilot, Tool

10.4" Diameter
264.2mm Diameter
1" x 23M Spline Input Shaft
Holds Up To 1300 ft/lbs of Torque
Weighs 55.60 lbs
164 Tooth R.Gear, 8 Bolt Crank, and
Centrifugally Assisted
Ball Bearing Design
Patented Multi-Disc Design

Availability: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!

Was: $2,187.99

Sale: $1,750.39

Save: 20%

Save: $437.60

Description
Product Video
Details
Shipping
Documents

Description

The Centerforce® DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Product Video

Centerforce DYAD Overview

Details

SKU: 413234818
Item #: 413234818
UPC #: 788442035377
Brand: Centerforce
Year Make Model Submodel: 2018 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2019 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2020 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2021 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2022 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2023 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
Year Make Model Submodel: 2024 Ford Mustang 5.0L (302 cid) - 6-Spd (MT82)
California Proposition 65: WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Out of Package Weight LBS: 55.60
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Input Shaft Diameter IN: 1
Input Spline Quantity: 23M
Clutch Disc Diameter IN: 10.4
Disc Quantity: 2
Clutch Disc Diameter MM: 264.2
Disc Type Sprung Solid: Sprung
Counterweight Assist: YES
Series: DYAD DS
Type: Clutch and Flywheel Kit
Torque Capacity FTLB: 1300
Title: Centerforce DYAD ® DS 10.4, Multi-Disc Clutch and Flywheel Kit, 55.60 lbs, 164 Tooth Gear, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 23M-Spline, Fits Ford s Mustang 5.0L
Pilot Bushing Included: Yes
Alignment Tool Included: Yes
Mounting Hardware Included: Yes
Made In The USA: Assembled
Flywheel Crank Bolt Size MM: M10 x 1.0 x 32
Installed Height IN: 4.150
Tooth Quantity: 164
Ring Gear OD IN: 14.236
Crankshaft Bolt Hole Quantity: 8
Availability Remarks: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 60.4 lbs.
Package Dimensions: W18.0000” x H5.5000” x L18.0000”
Shipping: Free Ground Shipping
