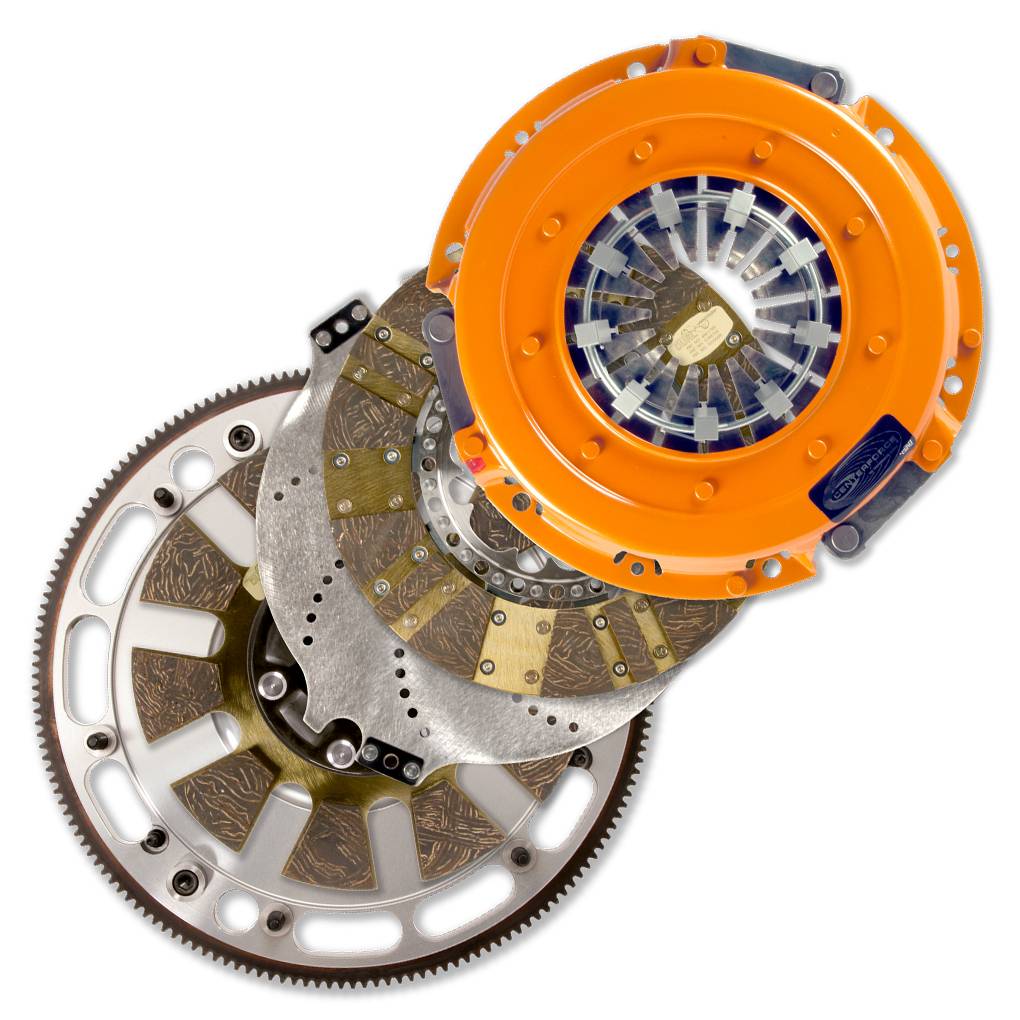

Centerforce DYAD ® DS 10.4, Multi-Disc Clutch and Flywheel Kit, 47.8 lbs, 168 Tooth Gear, 24.4 in/oz Externally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Chevrolet/GMC Cars and Trucks 6.6L

SKU: 413714880

The Centerforce® DYAD® DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

INCLUDES: Cover, Discs, Floater, Flywheel, Hardware, Pilot, Tool

10.4" Diameter
264.2mm Diameter
1-1/8" x 10 Spline Input Shaft
Holds Up To 1300 ft/lbs of Torque
Weighs 47.8 lbs
Sprung Hub Disc with Organic/Carbon Composite Material
168 Tooth R.Gear, 6 Bolt Crank, and 24.4 oz Counter Balance

Availability: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!

Was: $2,162.99

Sale: $1,514.09

Save: 30%

Save: $648.90

Description
Product Video
Details
Shipping
Documents

Description

The Centerforce® DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Product Video

Centerforce DYAD Overview

Details

SKU: 413714880
Item #: 413714880
UPC #: 788442034349
Brand: Centerforce
Year Make Model Submodel: 1970 Chevrolet Chevelle 6.6L (400 cid)
Year Make Model Submodel: 1970 Chevrolet El Camino 6.6L (400 cid)
Year Make Model Submodel: 1970 Chevrolet Monte Carlo 6.6L (400 cid)
Year Make Model Submodel: 1971 GMC Sprint 6.6L (400 cid)
California Proposition 65: WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Out of Package Weight LBS: 47.8
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Input Shaft Diameter IN: 1-1/8
Input Spline Quantity: 10
Clutch Disc Diameter IN: 10.4
Clutch Disc Diameter MM: 264.2
Disc Material: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type: Segmented face
Counterweight Assist: YES
Type: Clutch and Flywheel Kit
Torque Capacity FTLB: 1300
Title: Centerforce DYAD ® DS 10.4, Multi-Disc Clutch and Flywheel Kit, 47.8 lbs, 168 Tooth Gear, 24.4 in/oz Externally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Chevrolet/GMC Cars and Trucks 6.6L
Pilot Bushing Included: Yes
Mounting Hardware Included: Yes
Series: DYAD DS
Made In The USA: Assembled
Flywheel Crank Bolt Size IN: 7/16 in x 20 x 0.875
Flywheel Counter Balance Weight INOZ: 24.4
Alignment Tool Included: Yes
Installed Height IN: 3.00
Seal Type: 2
Flywheel Crank Flange Register IN: 2.4855
Tooth Quantity: 168
Ring Gear OD IN: 14.105
Crankshaft Bolt Hole Quantity: 6
Availability Remarks: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 52.2 lbs.
Package Dimensions: W18.0000” x H5.5000” x L18.0000”
