Centerforce DYAD ® XDS 10.4, Extreme Multi-Disc Clutch and Flywheel Kit, 47.2 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1600 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl
415614842
Verify it fits
The Centerforce® DYAD® XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.

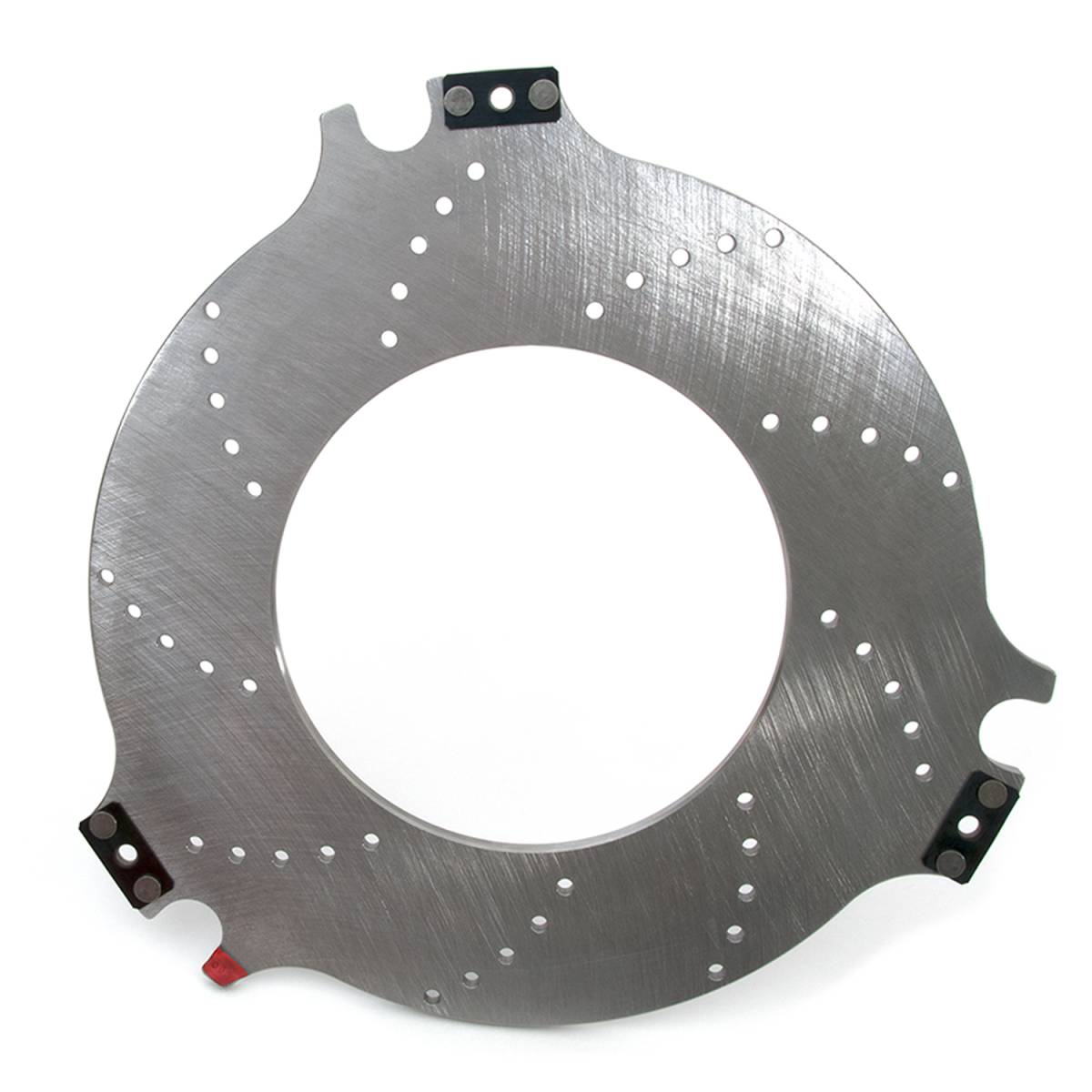

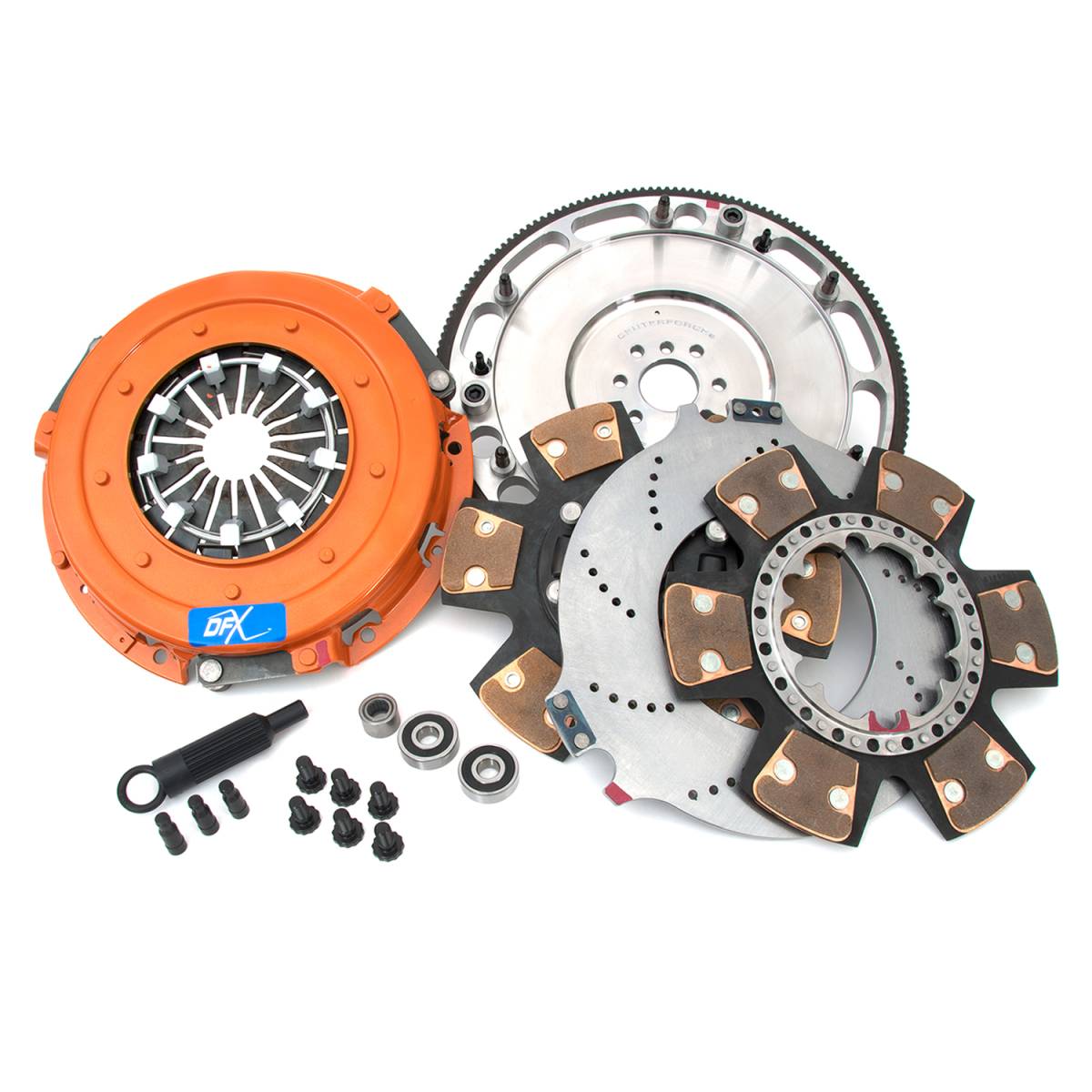

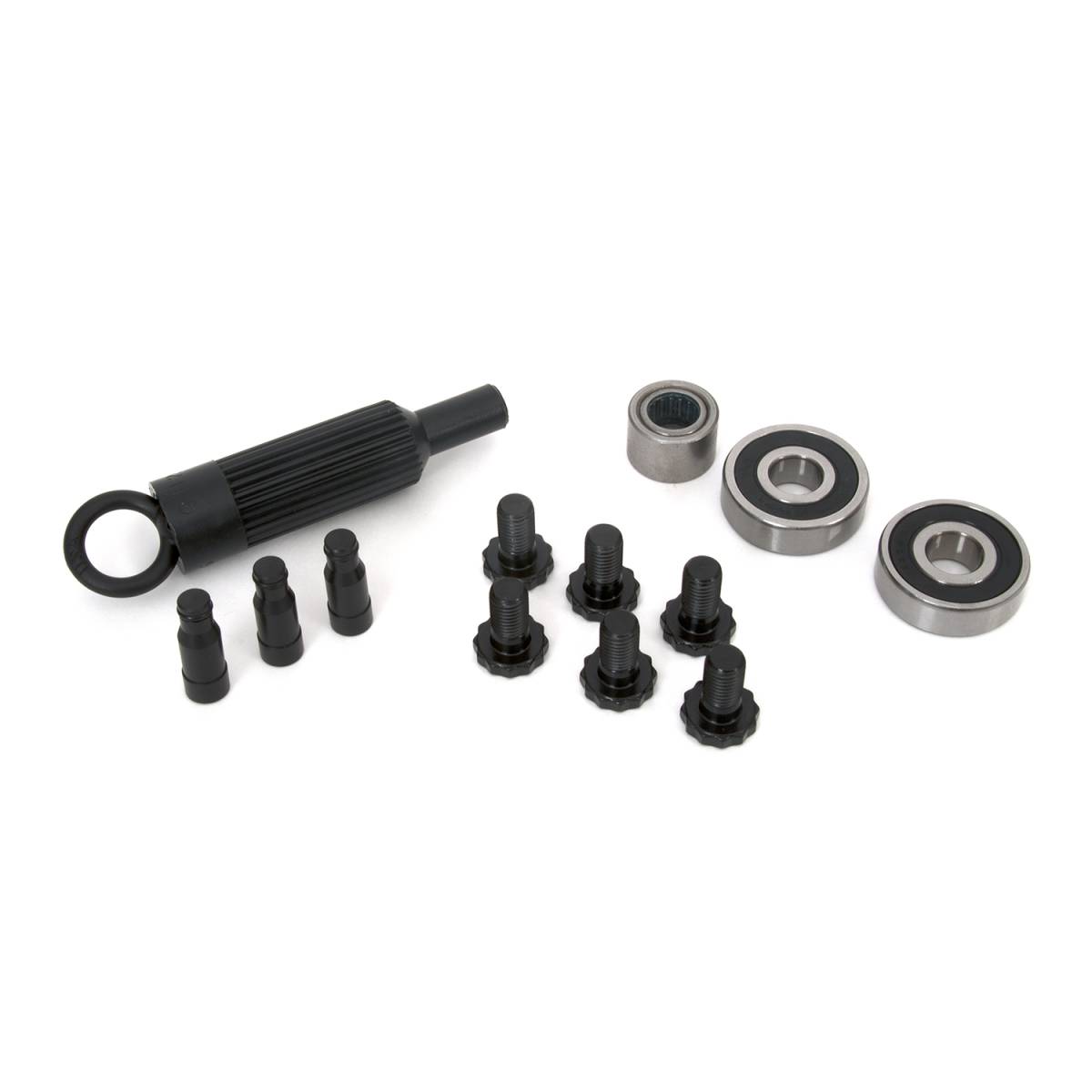

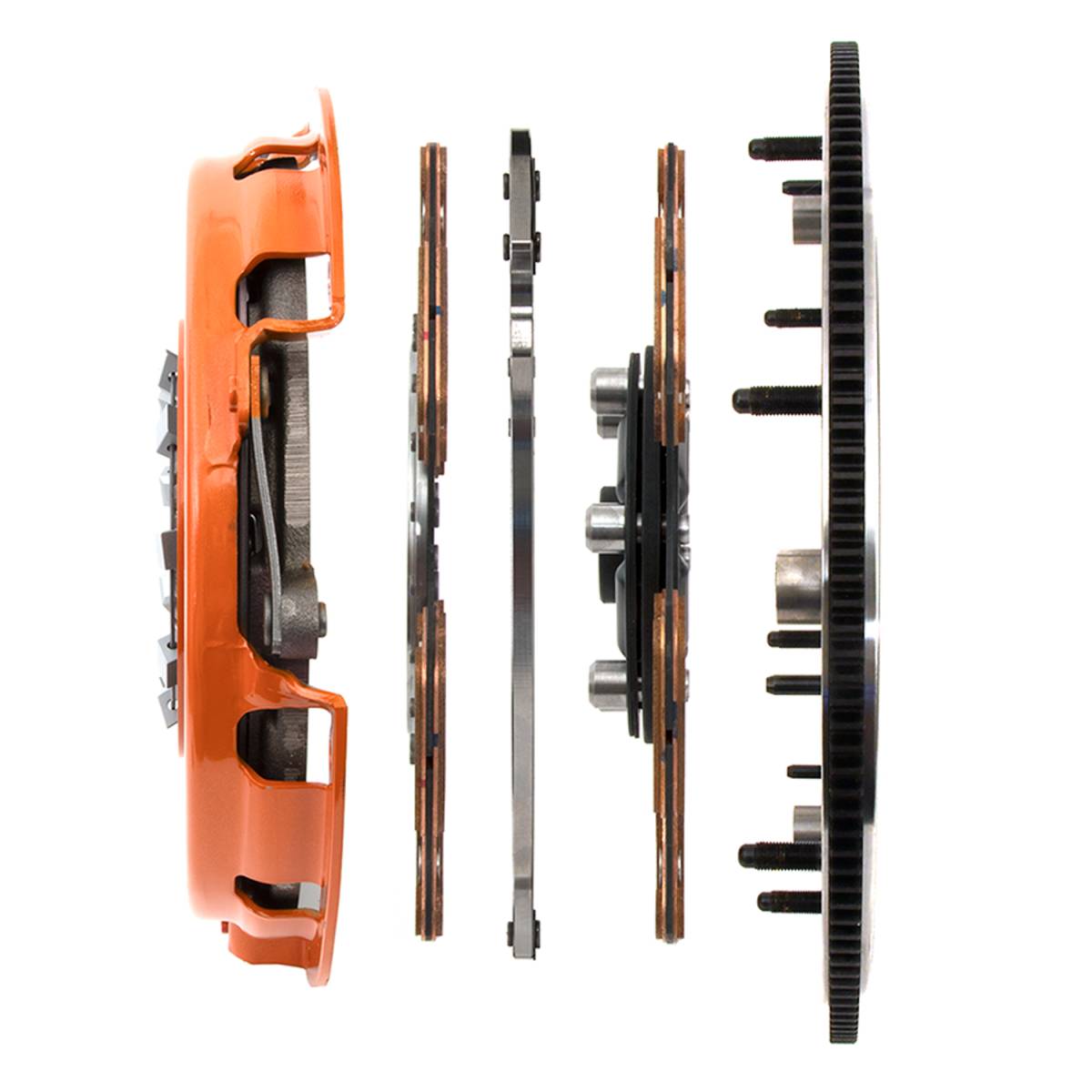

INCLUDES: Cover, Discs, Floater, Flywheel, Hardware, Pilots, Tool
INCLUDES: Cover, Discs, Floater, Flywheel, Hardware, Pilots, Tool
- 10.4" Diameter
- 264.2mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 1600 ft/lbs of Torque
- Weighs 47.2 lbs

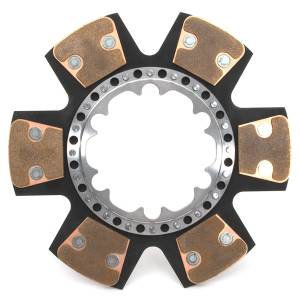

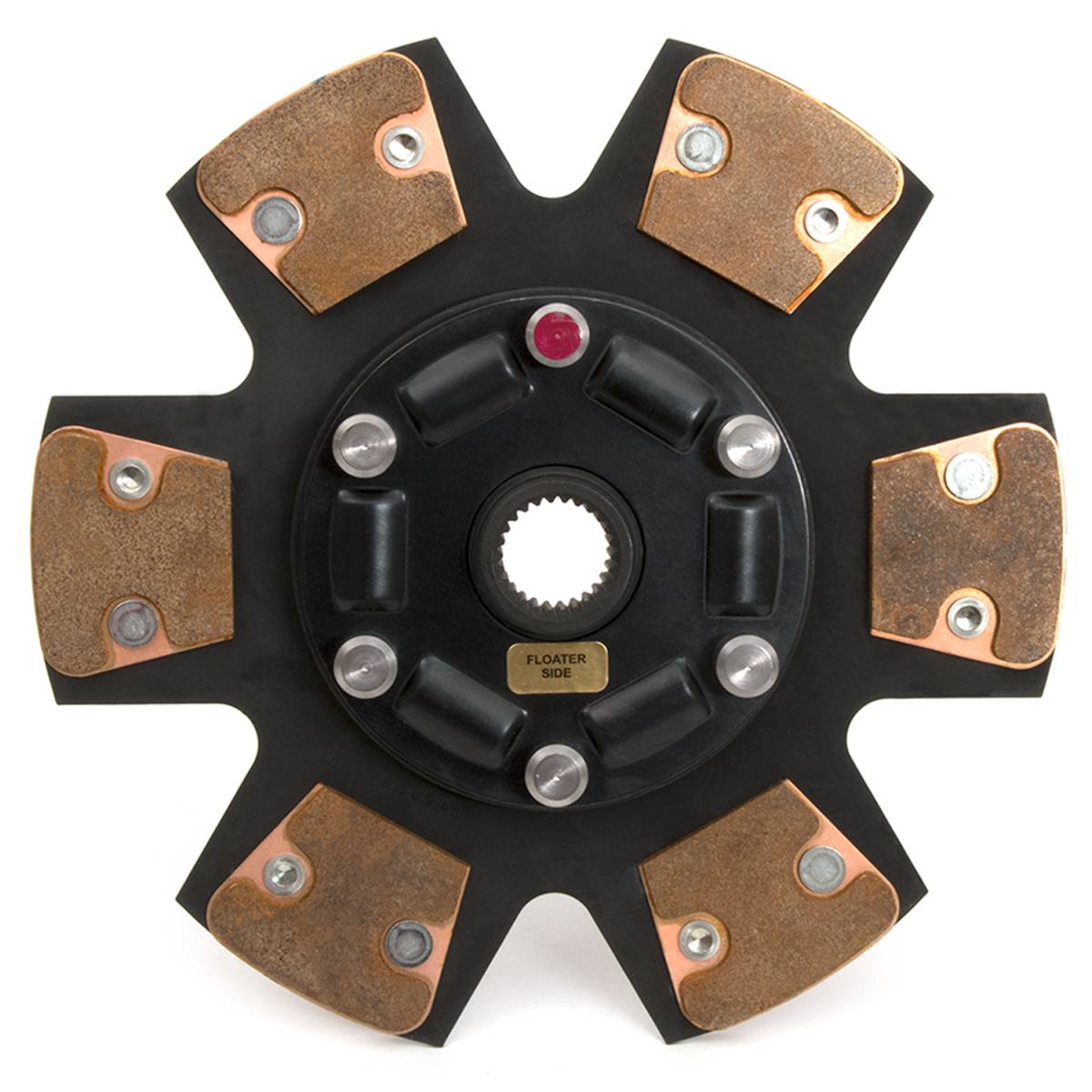

- Sprung Hub Disc with Cerametallic Material

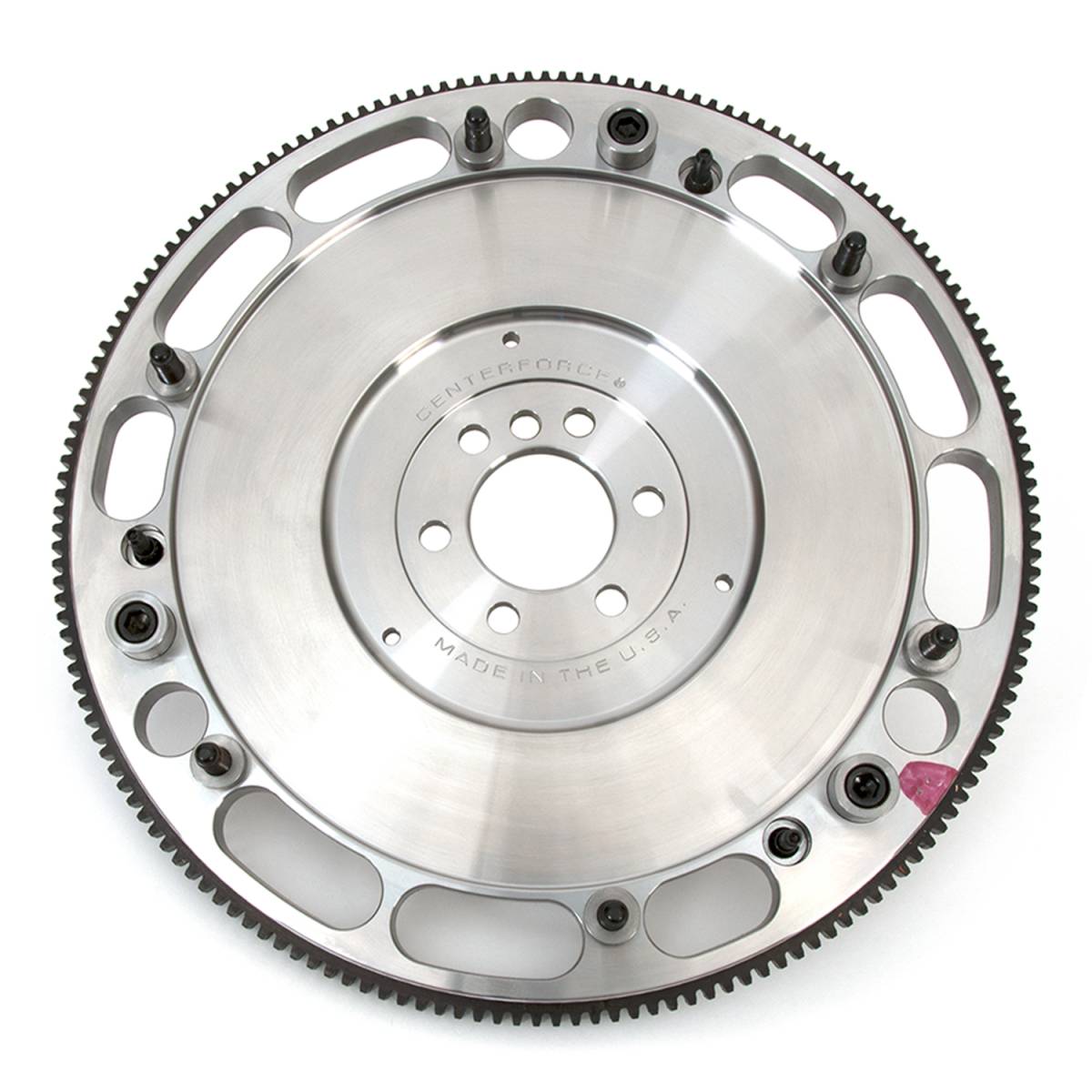

- 168 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
Availability: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!
Free Ground Shipping
Was:
$2162.99
Sale:
$1860.16
Save:
14%
Save:
$302.83
California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
Visit: www.p65warnings.ca.gov
Description

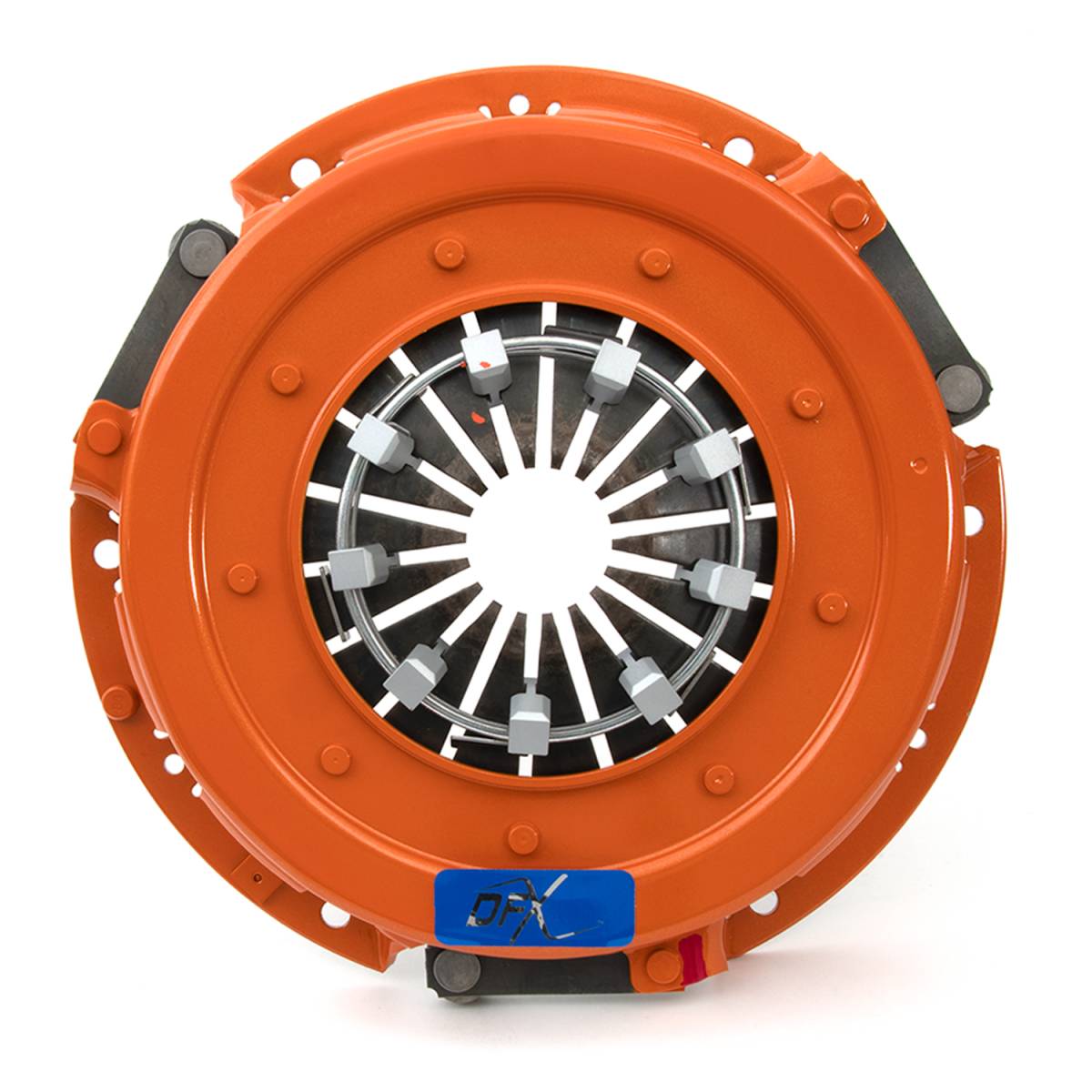

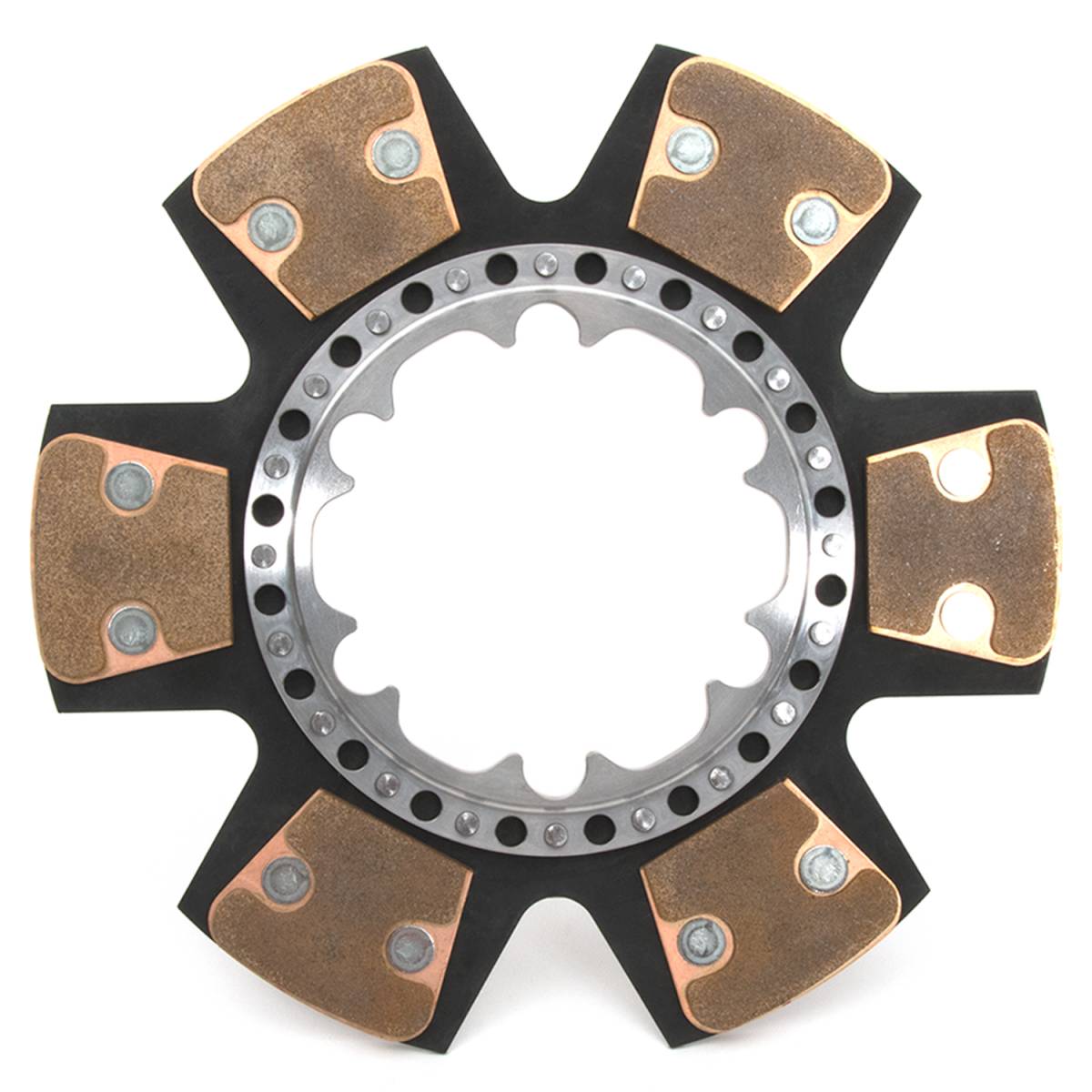

The Centerforce® DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
